Technical Design Drawings

Click the following to view U.S. Cooler® freezer Design Drawings:

U.S. Cooler<sup>®</sup> Drawings

U.S. Cooler® Drawings

Includes door, electrical, refrigeration, ceiling & footing drawings.
(This is a pdf file. If you do not have a pdf reader please visit get.adobe.com/reader)

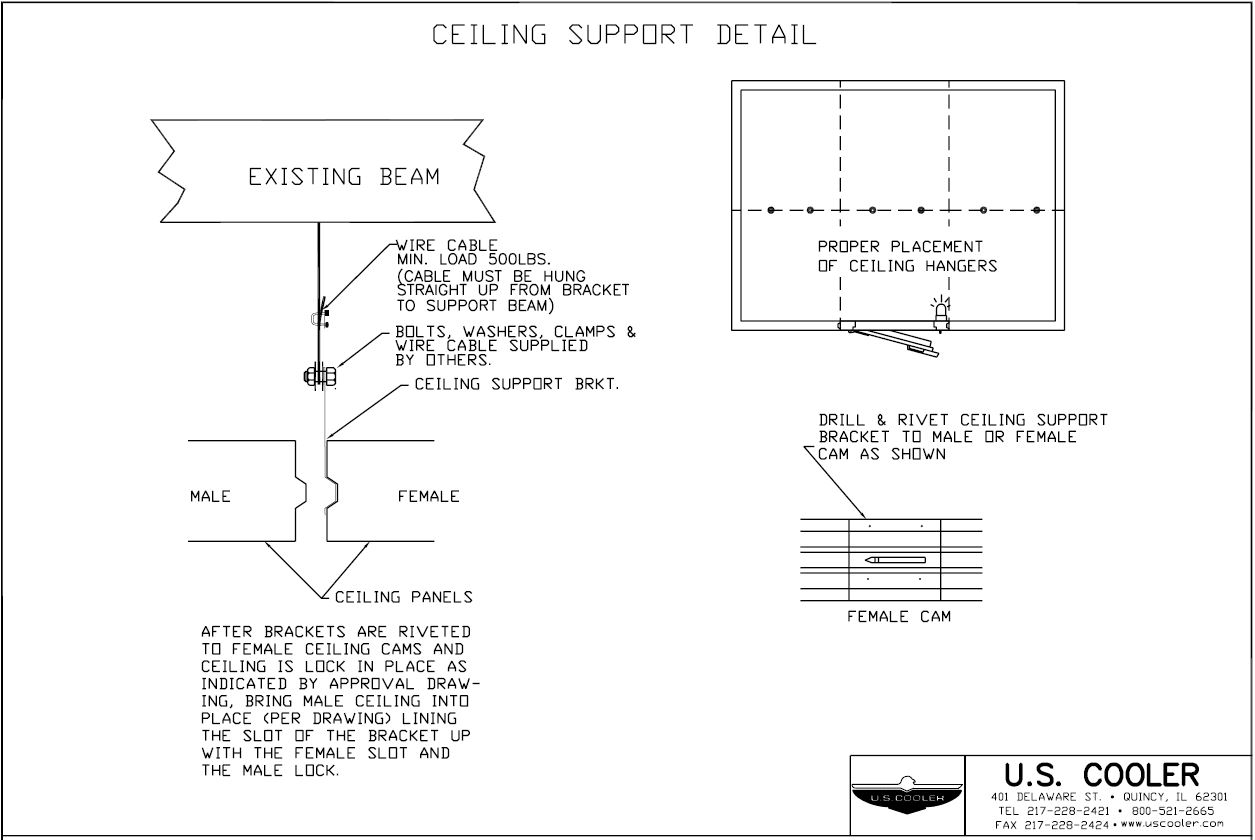

Ceiling Support Detail

(click for larger image)

Ceiling Support Detail

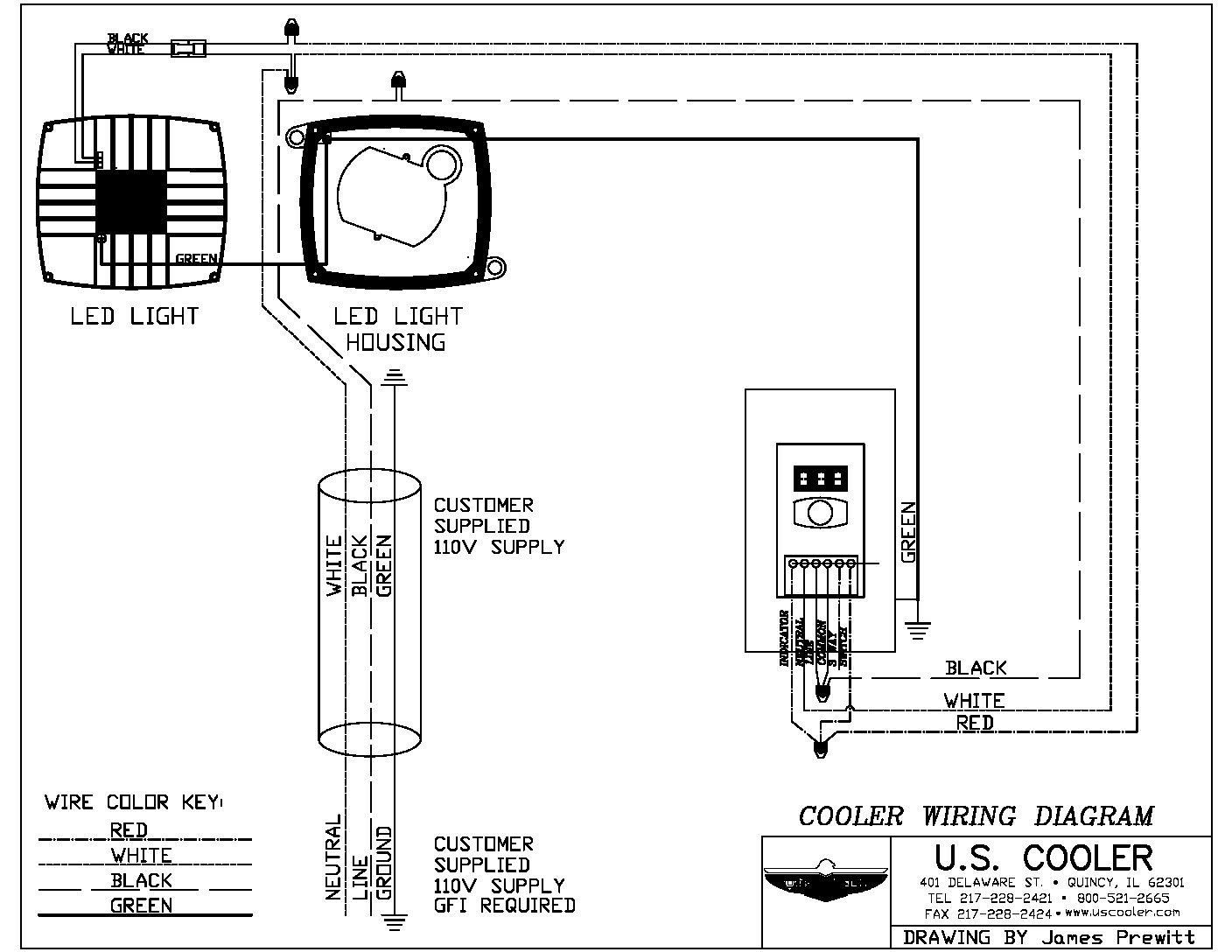

Cooler Wiring Diagram

(click for larger image)

Cooler Wiring Diagram

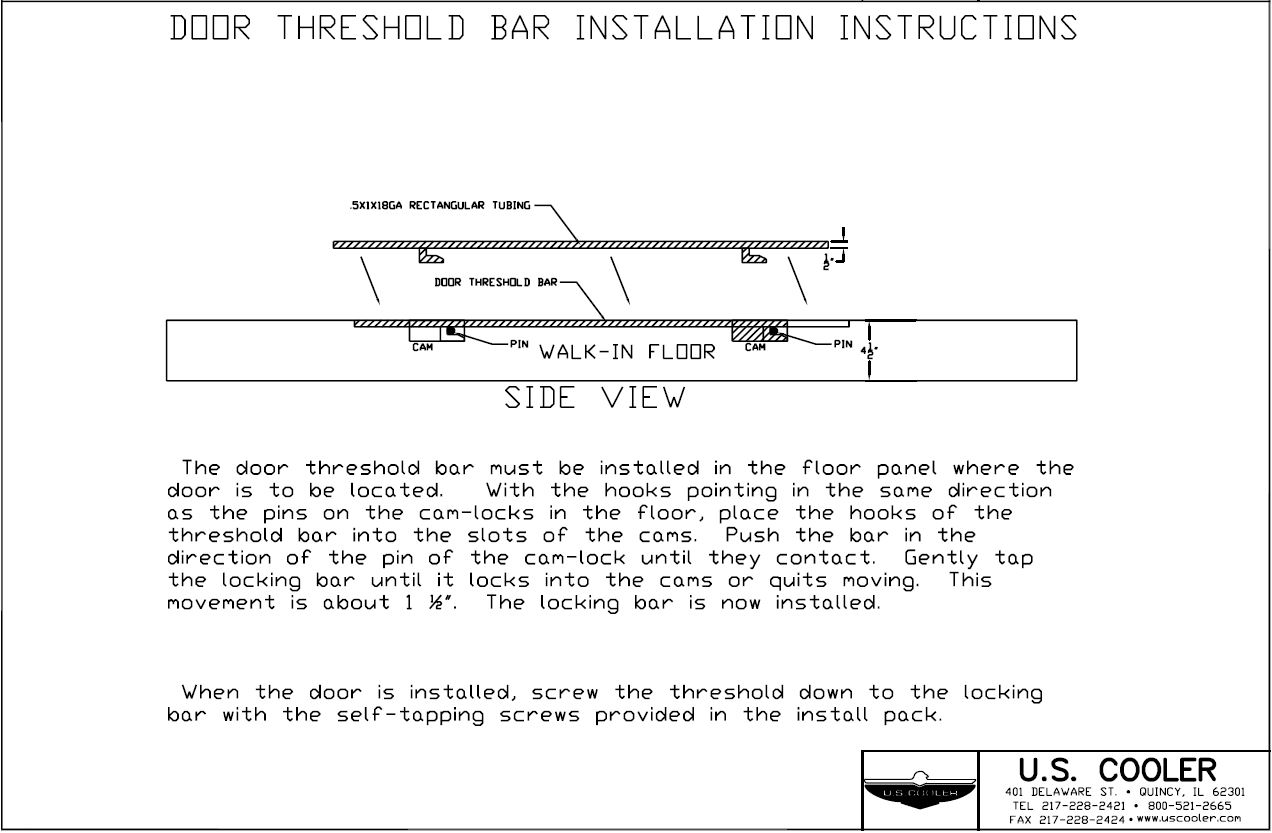

Door Threshold Bar Installation Instructions
(click for larger image)

Door Threshold Bar Installation Instructions

Floorless Footing Detail

(click for larger image)

Floorless Footing Detail

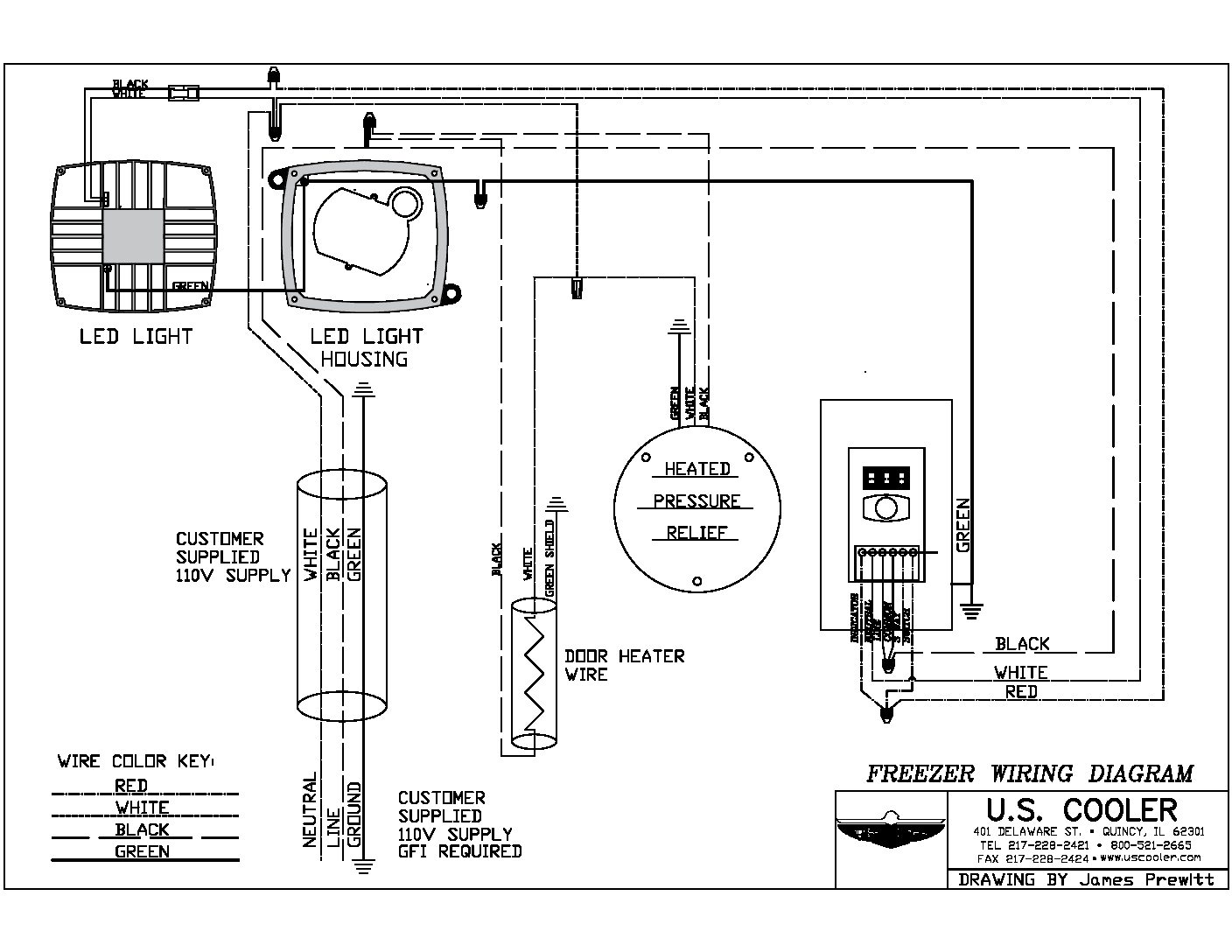

Freezer Wiring Diagram

(click for larger image)

Freezer Wiring Diagram

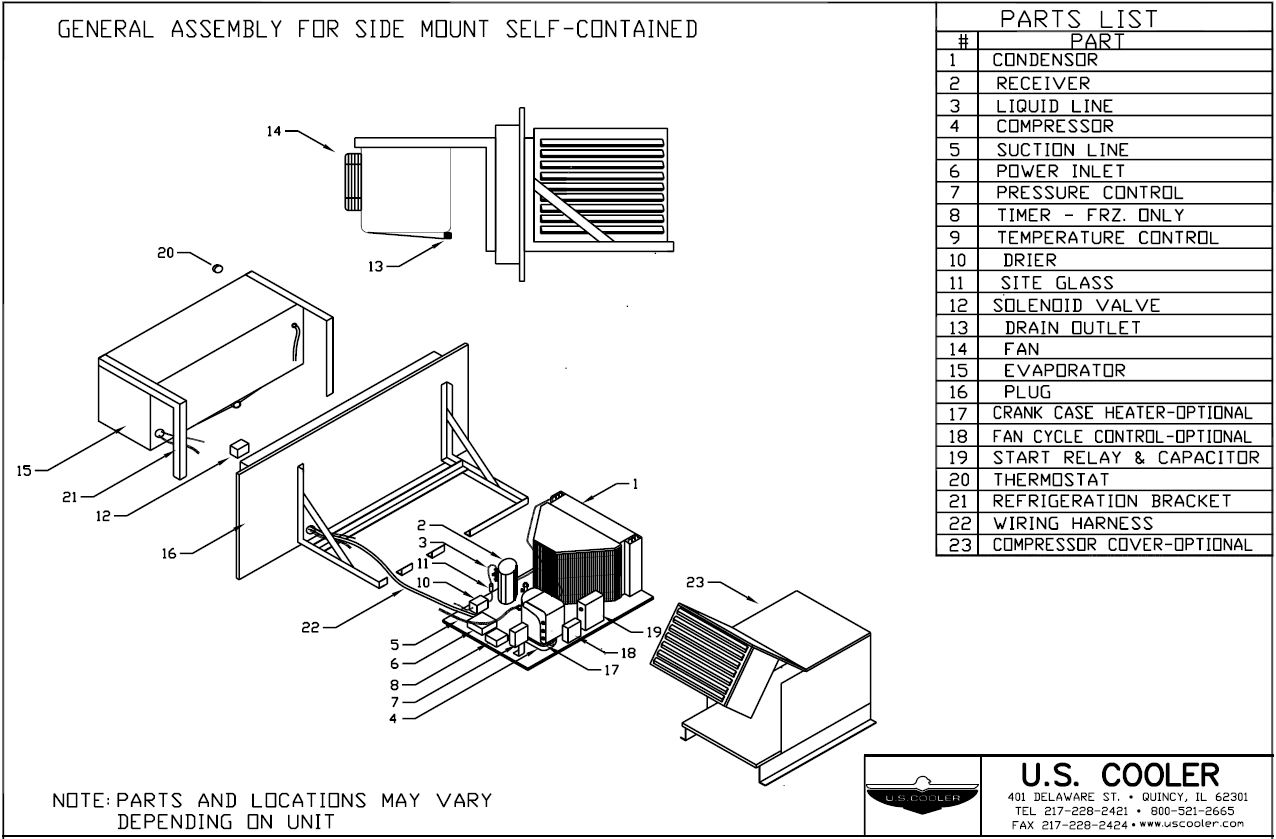

General Assembly For Side Mount Self-contained
(click for larger image)

General Assembly For Side Mount Self-Contained

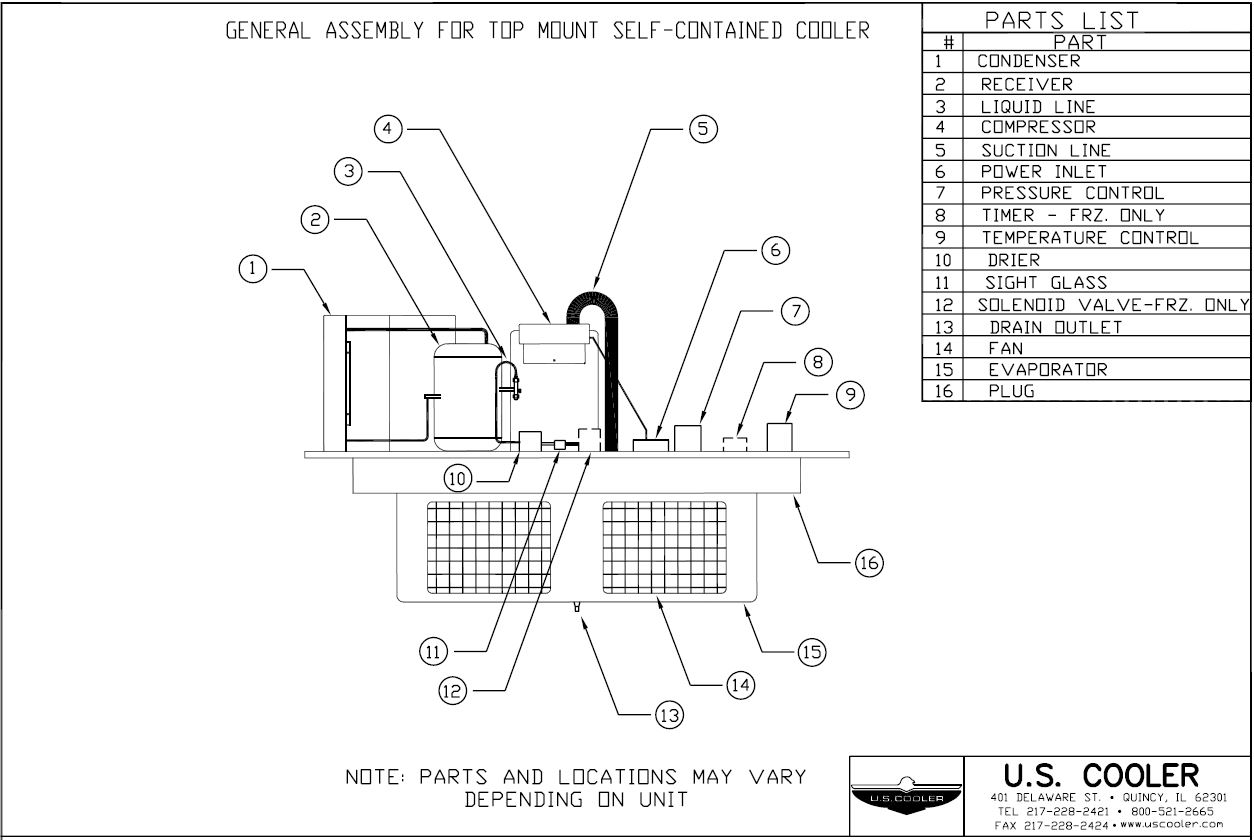

General Assembly for Top Mount Self-contained Cooler
(click for larger image)

General Assembly for Top Mount Self-Contained Cooler

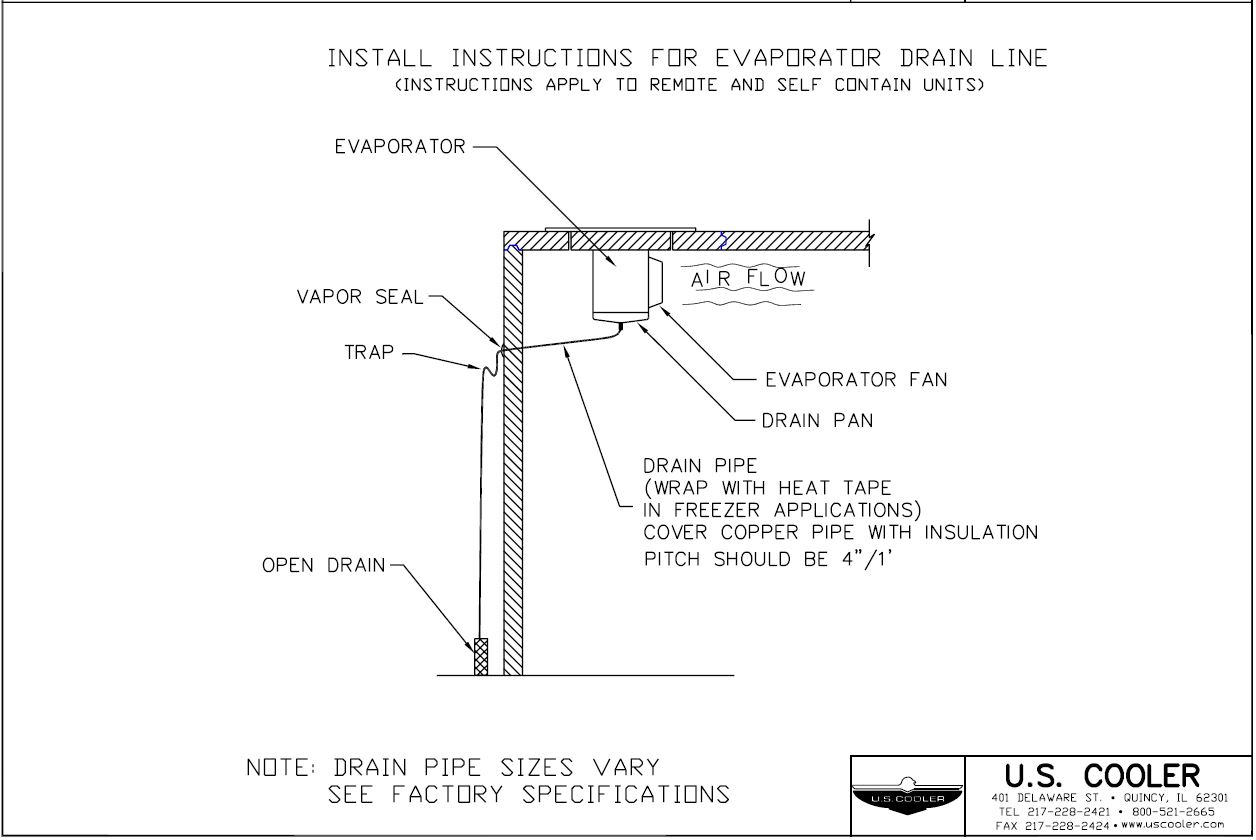

Installation Instruction for Evaporator Drain Line
(click for larger image)

Install Instructions For Evaporator Drain Line

Plug Door With Frame

(click for larger image)

Standard Plug Door with Frame

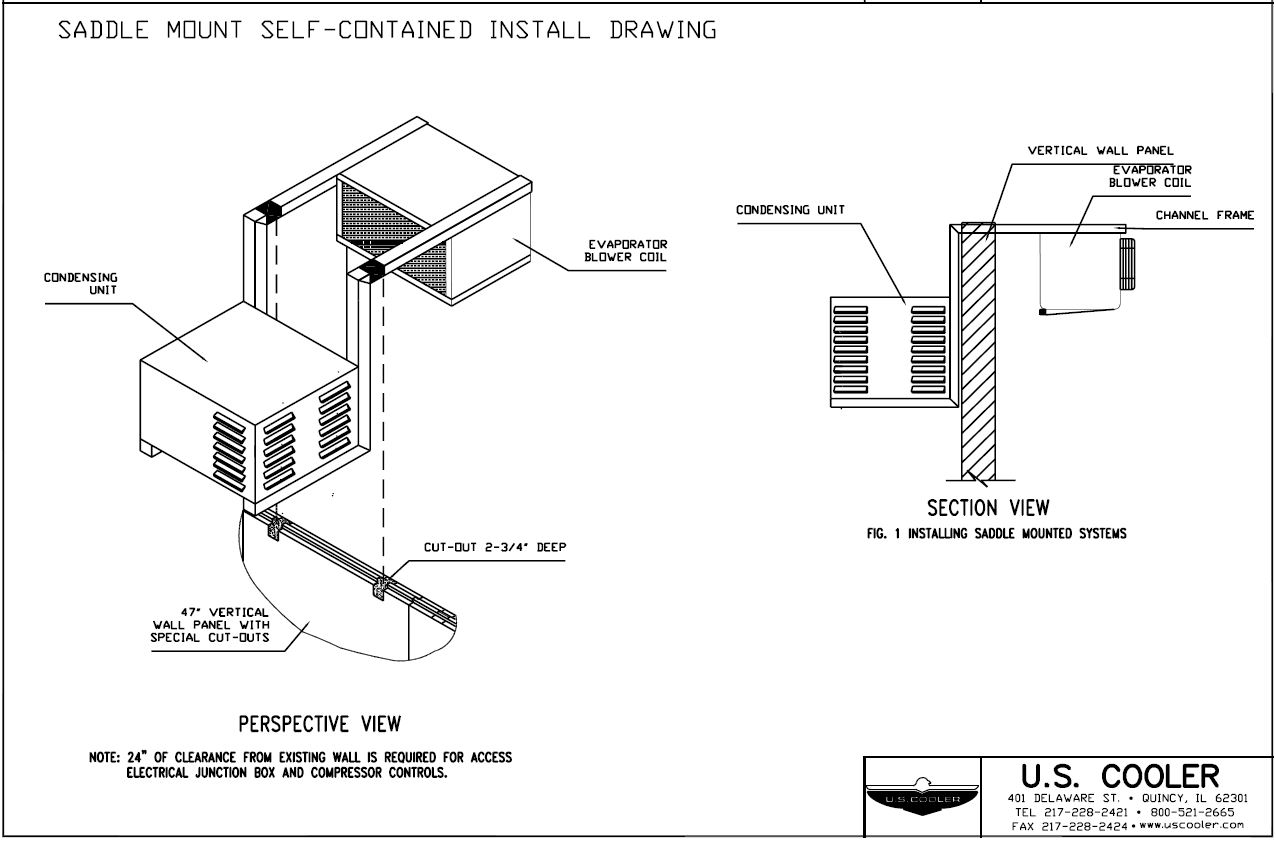

Saddle Mount Self-contained Installation Drawing
(click for larger image)

Saddle Mount Self-Contained Install Drawing

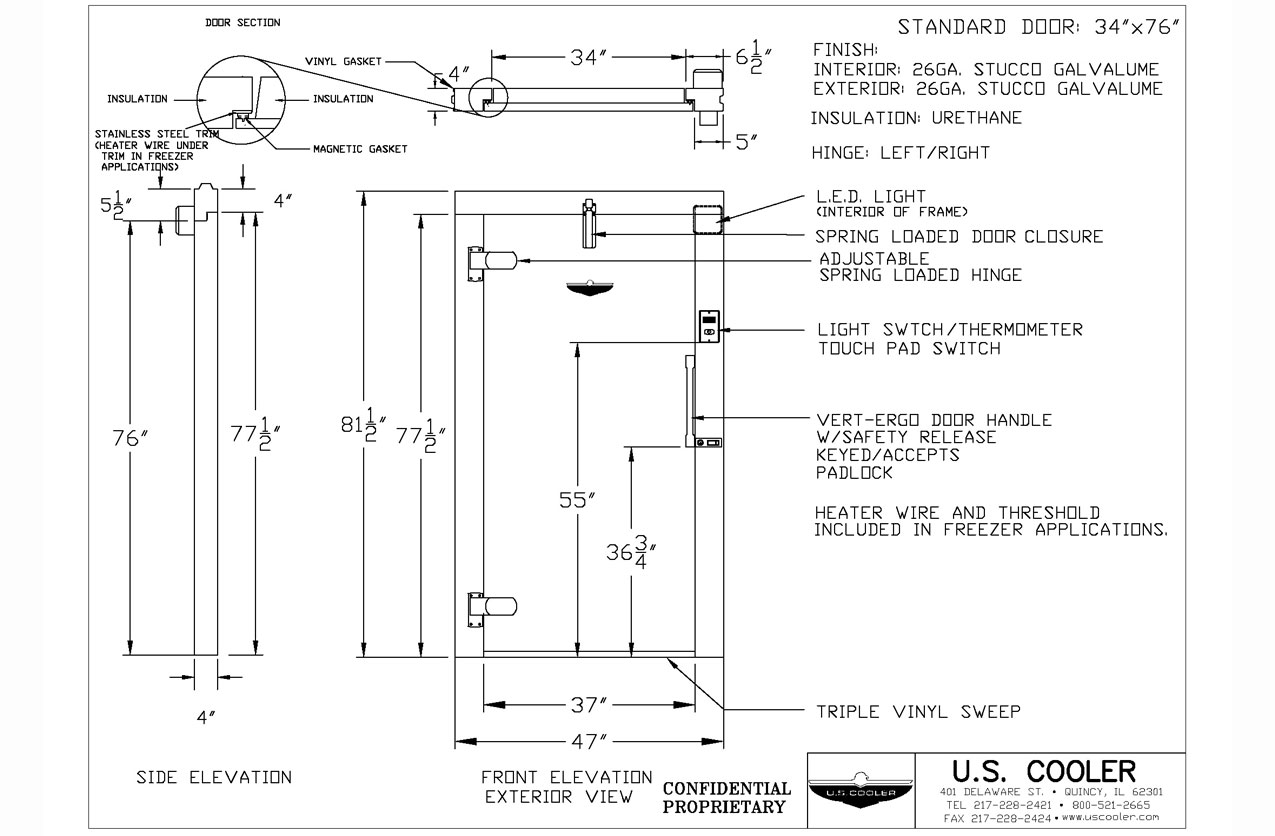

Standard Door 34″ x 76″

(click for larger image)

Standard Door 34x76

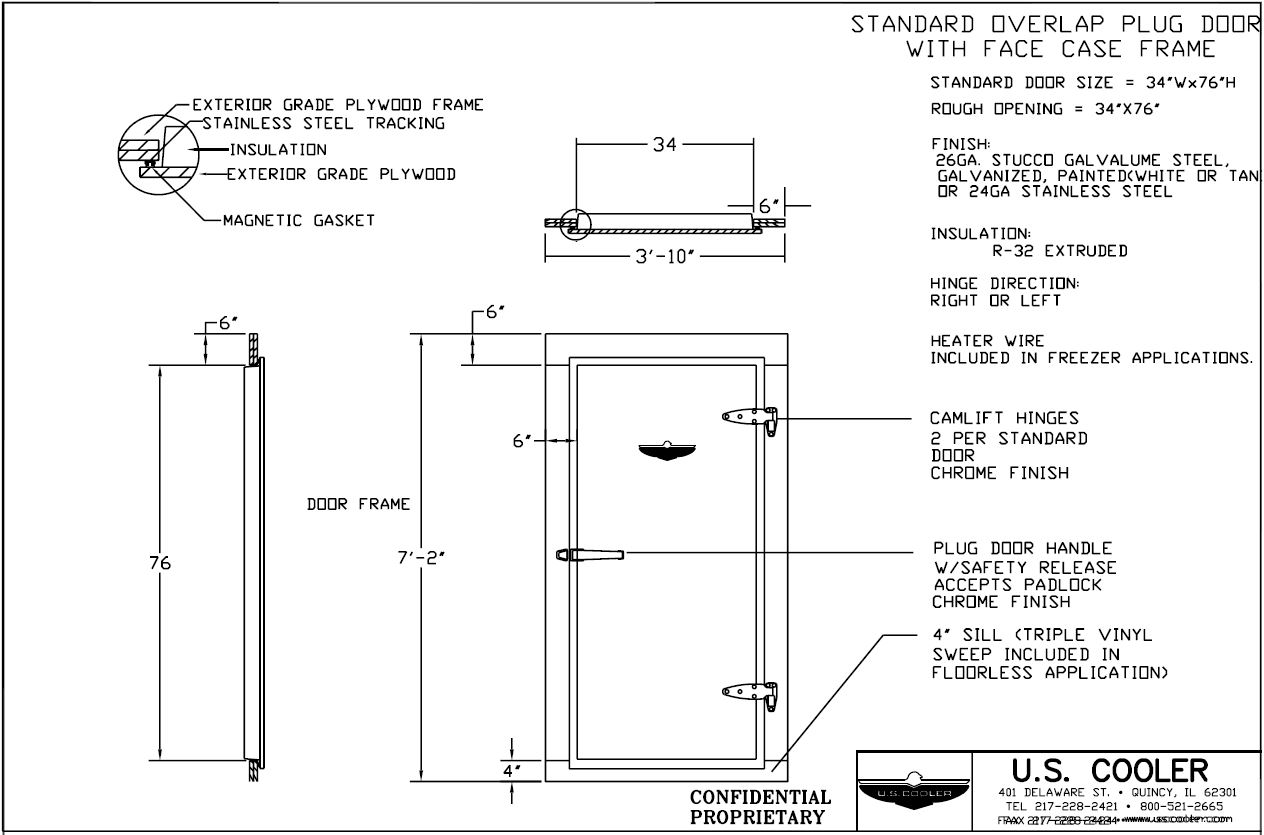

Standard Overlap Plug Door With Face Case Frame
(click for larger image)

Standard Overlap Plug Door with Face Case Frame
